The goal of this experiment was to have a UIView with multiple square subviews of different sizes that would start falling as soon as the app starts. The first tricky part is how to add the latest version of the Box2D physics engine to your iPhone project. Then we need to mediate between the different units and coordinate systems of UIKit and Box2D. Finally when we got it all running, we also want to add the current gravity vector to affect the boxes.
So, to get started we need to get the latest version of Box2D. It’s also included in Cocos2D, but for this tutorial we don’t care about getting the entire Cocos2D project. Box2D has a site on Google Code which tells us how to check out a read-only-copy of Box2D.
Adding Box2D
So we start a terminal, cd into a suitable directory and use this svn command to check out:
svn checkout http://box2d.googlecode.com/svn/trunk/ box2d-read-only |
In the Box2D/Box2D subfolder of the folder this command creates you find all the C++ files that make up the engine.

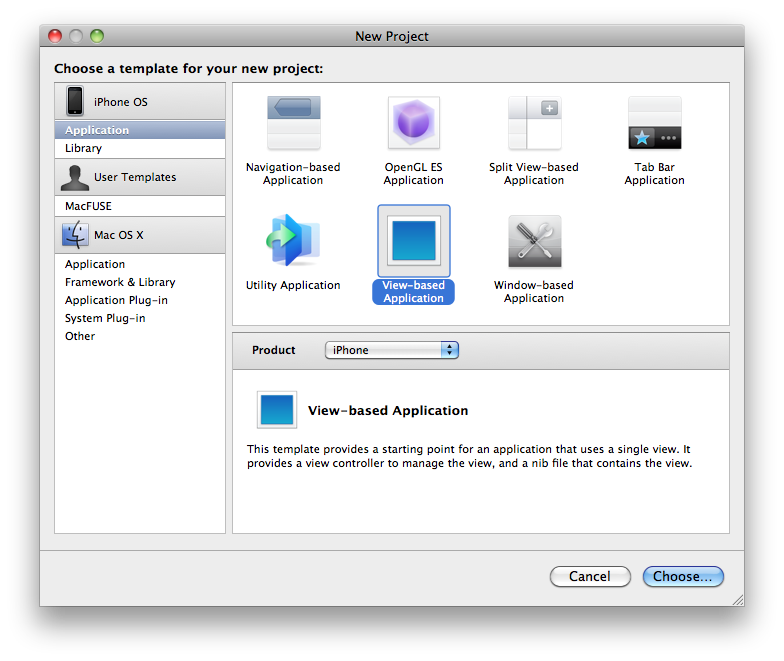

Next we’ll create a new View-based iPhone app, I’m calling mine UIKitPhysics.

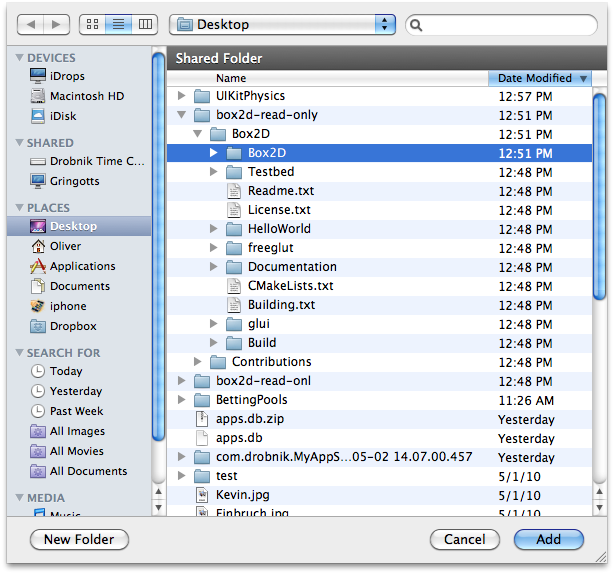

Now choose Add – Existing Files. Navigate to the innermost Box2D folder of the project, it’s 2 levels deep, and add it to your project.

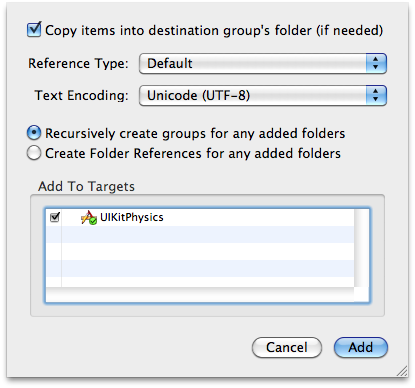

If you want to be able to update it from the repository in the future, you need to not copy it to your project. If you don’t care about updating then you can copy the files. I choose to copy it because it makes setting of the header search path easier later on.
So now we have a Box2D group in our project. This is one way of adding it, the other would be to build a static library in Box2D and add this, but the above mentioned method looks easy enough for our first physics-enabled app.
There are still a couple more tweaks necessary to get it all working properly.

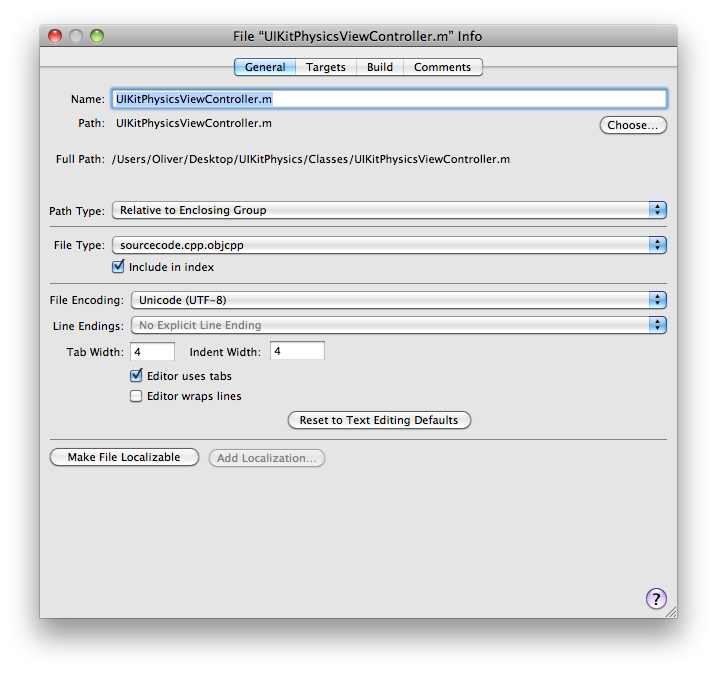

Box2D is written entirely in C++, but we are used to be working in Objective-C. Xcode usually uses the file extension to discern which compiler to use. Now if we are going to uses some function calls into Box2D those will be in C++ syntax. So we have two options to get the compiler to accept these as valid syntax. Either you modify the file extension to .mm or you force the compiler directly to interpret the affected files as C++. I think the latter is cleaner.
This tweak is necessary for all .m files which use C++ syntax and/or include the Box2D header. Since the default project probably has an include of the our view controller’s header in the app delegate, you need to make the same adjustment for the app delegate’s .m file. Get Info on the those files and change the file type to “sourcecode.cpp.objcpp”. This does not hurt, your normal Objective-C code can still be compiled normally.

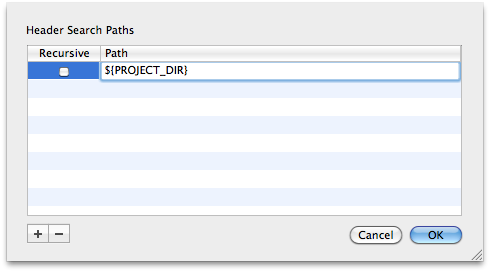

Box2D uses angle brackets for all imports. So as the last step we need to add the location where the Box2D directory resides to the header search path. This can be done in the Project Settings or Target Settings. Since we want it to be in effect for all targets it’s preferable to set it in the Project Settings. Go to Project – Edit Project Settings, look for “Header Search Paths” and add this setting.
I’m using the environment variable ${PROJECT_DIR} so that it always works regardless where our project currently resides. Should you have Box2D outside of the project then you need to add the full path at this stage.
Now with this setting any #import with angle brackets will also work if the Box2D folder is inside your project root directory.
UIKit, meet Mr. Box2D
Now we are ready to add physical behaviors to our UIKit app. But first a couple of tidbits to understand the differences between those two.
Any two-dimensional object in Box2D has it’s own representation which is completely independent from how it is drawn. Nor does Box2D draw anything nor does it move anything. Therefore we have to create a physical representation for each view that we want to attach physics to. We have to set a timer to poll where the physical object have moved and rotated to at set intervals and update our UIKit views accordingly.
Another difference is in the coordinate system used. UIKit has the (0,0) point in the upper left, Box2D in the lower left corner. UIKit uses pixels as measurement, Box2D meters. So we have to find a good value of how many pixels should correspond to one meter in our physical model. I chose 16 pixels to make up a meter, and defined it at the top of our view controller.
#define PTM_RATIO 16 |
The model in which all physical calculations occur is called the “world”. We also need a timer to update our views frequently, so we’ll define two instance variables in our view controller.
#import <Box2D/Box2D.h> @interface UIKitPhysicsViewController : UIViewController { b2World* world; NSTimer *tickTimer; } |
And the appropriate dealloc in the implementation.
- (void)dealloc { [tickTimer invalidate], tickTimer = nil; [super dealloc]; } |
Next we implement a method to set up this world and define a couple of boundaries on all sides so that our objects won’t fall out.
-(void)createPhysicsWorld { CGSize screenSize = self.view.bounds.size; // Define the gravity vector. b2Vec2 gravity; gravity.Set(0.0f, -9.81f); // Do we want to let bodies sleep? // This will speed up the physics simulation bool doSleep = true; // Construct a world object, which will hold and simulate the rigid bodies. world = new b2World(gravity, doSleep); world->SetContinuousPhysics(true); // Define the ground body. b2BodyDef groundBodyDef; groundBodyDef.position.Set(0, 0); // bottom-left corner // Call the body factory which allocates memory for the ground body // from a pool and creates the ground box shape (also from a pool). // The body is also added to the world. b2Body* groundBody = world->CreateBody(&groundBodyDef); // Define the ground box shape. b2EdgeShape groundBox; // bottom groundBox.Set(b2Vec2(0,0), b2Vec2(screenSize.width/PTM_RATIO,0)); groundBody->CreateFixture(&groundBox, 0); // top groundBox.Set(b2Vec2(0,screenSize.height/PTM_RATIO), b2Vec2(screenSize.width/PTM_RATIO,screenSize.height/PTM_RATIO)); groundBody->CreateFixture(&groundBox, 0); // left groundBox.Set(b2Vec2(0,screenSize.height/PTM_RATIO), b2Vec2(0,0)); groundBody->CreateFixture(&groundBox, 0); // right groundBox.Set(b2Vec2(screenSize.width/PTM_RATIO,screenSize.height/PTM_RATIO), b2Vec2(screenSize.width/PTM_RATIO,0)); groundBody->CreateFixture(&groundBox, 0); } |
We create a helper method that finds out the necessary parameters for a view we pass to it to create a representation in the physical world. Note that we use the center of views for their position because as soon as we apply a transform (which we need for the rotation) the frame position and size become unusable. Luckily the center property can be used whatever the transform is.
-(void)addPhysicalBodyForView:(UIView *)physicalView { // Define the dynamic body. b2BodyDef bodyDef; bodyDef.type = b2_dynamicBody; CGPoint p = physicalView.center; CGPoint boxDimensions = CGPointMake(physicalView.bounds.size.width/PTM_RATIO/2.0,physicalView.bounds.size.height/PTM_RATIO/2.0); bodyDef.position.Set(p.x/PTM_RATIO, (460.0 - p.y)/PTM_RATIO); bodyDef.userData = physicalView; // Tell the physics world to create the body b2Body *body = world->CreateBody(&bodyDef); // Define another box shape for our dynamic body. b2PolygonShape dynamicBox; dynamicBox.SetAsBox(boxDimensions.x, boxDimensions.y); // Define the dynamic body fixture. b2FixtureDef fixtureDef; fixtureDef.shape = &dynamicBox; fixtureDef.density = 3.0f; fixtureDef.friction = 0.3f; fixtureDef.restitution = 0.5f; // 0 is a lead ball, 1 is a super bouncy ball body->CreateFixture(&fixtureDef); // a dynamic body reacts to forces right away body->SetType(b2_dynamicBody); // we abuse the tag property as pointer to the physical body physicalView.tag = (int)body; } |
In the view controller’s viewDidLoad method we create our world, call the addPhysicalBodyForView for each subview of our view and finally start the update timer.
- (void)viewDidLoad { [super viewDidLoad]; [self createPhysicsWorld]; for (UIView *oneView in self.view.subviews) { [self addPhysicalBodyForView:oneView]; } tickTimer = [NSTimer scheduledTimerWithTimeInterval:1.0/60.0 target:self selector:@selector(tick:) userInfo:nil repeats:YES]; } |

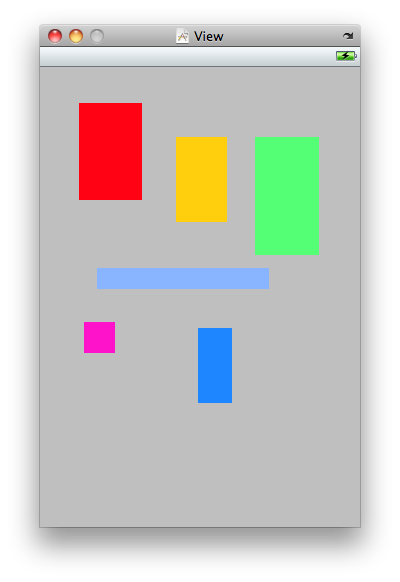

So that we have something to actually make physical let’s go into Interface Builder and create a couple of subviews in UIKitPhysicsViewController.xib.
Finally, we need a timer function to update the position and rotation of our views.
-(void) tick:(NSTimer *)timer { //It is recommended that a fixed time step is used with Box2D for stability //of the simulation, however, we are using a variable time step here. //You need to make an informed choice, the following URL is useful //http://gafferongames.com/game-physics/fix-your-timestep/ int32 velocityIterations = 8; int32 positionIterations = 1; // Instruct the world to perform a single step of simulation. It is // generally best to keep the time step and iterations fixed. world->Step(1.0f/60.0f, velocityIterations, positionIterations); //Iterate over the bodies in the physics world for (b2Body* b = world->GetBodyList(); b; b = b->GetNext()) { if (b->GetUserData() != NULL) { UIView *oneView = (UIView *)b->GetUserData(); // y Position subtracted because of flipped coordinate system CGPoint newCenter = CGPointMake(b->GetPosition().x * PTM_RATIO, self.view.bounds.size.height - b->GetPosition().y * PTM_RATIO); oneView.center = newCenter; CGAffineTransform transform = CGAffineTransformMakeRotation(- b->GetAngle()); oneView.transform = transform; } } } |
Now we’re set. If we start the app in simulator we see all views drop to the bottom and end up in a static heap. We remember from physics that all objects fall at the same rate in a vacuum, such is the case in this simulation. If we wanted to have air resistance to play a role we probably could add additional forces to the objects in addition to the global gravity, but for sake of simplicity we’ll be satisfied with this result for the time being.
BONUS: And Now with Acceleration
As bonus chapter of this article we want to add the capability to have real gravity affect our view. For this purpose we setup and start an accelerometer and set our view controller as the delegate. This we add at the end of the viewDidLoad method. To get around the warning that your class does not the UIAccelerometerDelegate protocol we add it in angle brackets to the interface declaration:
//Configure and start accelerometer [[UIAccelerometer sharedAccelerometer] setUpdateInterval:(1.0 / 60.0)]; [[UIAccelerometer sharedAccelerometer] setDelegate:self]; |
And in the delegate method we simply change the gravity vector of the physical world.
- (void)accelerometer:(UIAccelerometer *)accelerometer didAccelerate:(UIAcceleration *)acceleration { b2Vec2 gravity; gravity.Set( acceleration.x * 9.81, acceleration.y * 9.81 ); world->SetGravity(gravity); } |
One more addition is necessary to get this fully working. In our construction of the physical world we stated that we would allow objects to be sleeping. This lets the Box2D send objects to sleep if they don’t move anymore and don’t get hit by other objects. This makes perfect sense if gravity is always coming from the same direction. But since the gravity vector can now change up to 60 times per second we need to disable sleeping. Otherwise all objects will get stuck on one side if you hold the iPhone still long enough.
// Do we want to let bodies sleep? // This will speed up the physics simulation bool doSleep = false; |
Note that the accelerometer only sends events on an a physical device. In simulator only initially set gravity vector takes effect. Another funny effect is if you hold the iPhone face up then you can even make the objects weightless.
Conclusion
With little work it is possible to add a fully fledged albeit two-dimensional physics engine that can take control over some UIViews and have them behave as if they where real physical objects. This should allow for a couple of simple games using physics to spice up the interaction.
For anything more you’ll probably have to switch to using OpenGL for the drawing part or if that’s too complicated use the fully fledged Cocos2D engine.
But let me say this: “I love Physics”. so I’m really anxious to see what you can make of this tutorial. Show me what you got!

Categories: Recipes
Great Toturial !!! …
You should call it, UIKit App with Box2b for gravity under 30 minutes. 😉
Regards,
Raul.
Excellent howto, thanks for posting this! Got the demo working without a problem, the kids love it!
Thanks for the tutorial i need to move an obstacle suppose ball along path (curve ) how can i achieve this…in box2d for iphone.
Amazing tutorial.
Cannot believe how easy it was to get a physics simulation going…
Cheers,
Ben
Thank you kind sir. What did you make?
Always loved physics sims and this tutorial was the first that i felt i understood what was going on. Really like the idea of using UIViews, as it is much easier to see the setup of the Box2D world without the complexity of OpenGL and/or other drawing frameworks.
Tried it on my new iPad and i can foresee great things! Though for the iPad i changed the constant in (void)addPhysicalBodyForView:(UIView *)physicalView from 460.0 to self.view.bounds.size.height
Also added a couple of small UIImageViews, and as they are a sub-class of UIView the iterator picks them up and adds them to the world. So cool. Now to find something sensible to use this for…
Many thanks for this great tutorial,
Mark
I just followed this tutorial to the letter (Box2D_v2.1.2, Xcode 3.2.2), but Xcode cannot find the Box2D include files.
I added the search path ${PROJECT_DIR}, and copied/added all the Box2D files just like in your example.
The first error of the 2241 compile errors is:
Box2D/Collision/b2BroadPhase.h: No such file or directory
Any ideas?
You probably did not copy the Box2D folder to the correct location. All other commenting users had no problem getting it to work.
Ok, I found the problem now, I just linked in the box2d files, but seems you really need to copy them. I thought xcode would be clever enough to find files you actually add to the project without spelling their location out in the search path in addition.
Perhaps you should point out copying box2d to the project folder is not optional to make the tutorial work, for people like me who are not familiar with xcode. 🙂
Thank you very much for this blog post. It was really useful.
Important notes: Box2d stopped b2PolygonShape to be used for edges, they now require b2EdgeShape to be used for that. So change the code:
b2PolygonShape groundBox;
// bottom
groundBox.SetAsEdge(b2Vec2(0,0), b2Vec2(screenSize.width/PTM_RATIO,0));
groundBody->CreateFixture(&groundBox, 0);
// top
groundBox.SetAsEdge(b2Vec2(0,screenSize.height/PTM_RATIO), b2Vec2(screenSize.width/PTM_RATIO,screenSize.height/PTM_RATIO));
groundBody->CreateFixture(&groundBox, 0);
// left
groundBox.SetAsEdge(b2Vec2(0,screenSize.height/PTM_RATIO), b2Vec2(0,0));
groundBody->CreateFixture(&groundBox, 0);
// right
groundBox.SetAsEdge(b2Vec2(screenSize.width/PTM_RATIO,screenSize.height/PTM_RATIO), b2Vec2(screenSize.width/PTM_RATIO,0));
groundBody->CreateFixture(&groundBox, 0);
TO:
b2EdgeShape groundBox;
// bottom
groundBox.Set(b2Vec2(0,0), b2Vec2(screenSize.width/PTM_RATIO,0));
groundBody->CreateFixture(&groundBox, 0);
// top
groundBox.Set(b2Vec2(0,screenSize.height/PTM_RATIO), b2Vec2(screenSize.width/PTM_RATIO,screenSize.height/PTM_RATIO));
groundBody->CreateFixture(&groundBox, 0);
// left
groundBox.Set(b2Vec2(0,screenSize.height/PTM_RATIO), b2Vec2(0,0));
groundBody->CreateFixture(&groundBox, 0);
// right
groundBox.Set(b2Vec2(screenSize.width/PTM_RATIO,screenSize.height/PTM_RATIO), b2Vec2(screenSize.width/PTM_RATIO,0));
groundBody->CreateFixture(&groundBox, 0);
Also, if someone else is having trouble knowing what file to import, the first one is the header of that same file and the second one is Box2D.h.
Finally, when setting the header search path, be sure to select recursive so it will search in the inside of the Box2d folder.
Thanks again! Keep up the good work!
I want to animate a rope/cable. Can that be done with Box2D?
No idea. You’d have to ask somebody who actually knows about Box2D.
Hey,
Thanks for the tutorial. I’m having trouble with some errors though. I tried copy/paste, but it gives errors, see link below.
http://img840.imageshack.us/i/errorsfr.png/
I’d appreciate your help!
-Steaming Coaco
I’ve got more of it working, saw the other post. I’ve got 3 errors so far, I’ll probably run into many more…
updated photo:
http://img689.imageshack.us/i/3errors.png/
Replace all & gt; with > and all & lt; with < Somehow the syntax highlighter and wordpress messed that up.
b2Body* groundBody = world->CreateBody(&groundBodyDef);
This line is still giving errors.
Error: ‘amp’ was not declared in this scope.
Error: Expected ‘;’ before ‘)’ token.
Have another look now, all amp should be & and all gt should be >
I’ve got it working now, thanks for following this and giving help! Really cool. 🙂
Hi,
probably you’ve solved the issue, but for the other people that have this problem, one thing to control is to ensure that there are no spaces in the path, if so, then put the path between “.
For instance, if your project dir is Users/xcode projects/project, this will fail with that error and you must put:
“${PROJECT_DIR}”
This is a great blog. I hope you don’t mind, I’ve taken your code and made an ‘OpenGL’ version (for IOS) – I’ve credited you (and linked back to here too). Hope that’s OK.
Here’s my Open GL version:
http://www.karmatoad.co.uk/?p=183
That’s what I wanted. Pure satisfaction!!
Thank you for this nice tutorial
Has anyone gotten this to work with Xcode 4? For the life of me I can’t get the paths correct.
Just thought I’d let you know – this was the article gave me the idea for my tweak Graviboard 🙂
http://www.kramerapps.com/graviboard/
Hi!
I’m running into issues while trying to add Box2D into my project. I’m using Xcode4 with Box2D v2.1.2.
Issue # 1: When i try to add Box2D into my project, i (sometimes) receive the following message “The request could not be performed because it was returned by Subversion as invalid.”
Issue # 2: If i somehow manage to add Box2D into the project, it doesn’t compile. However, modifying Header Section Paths to ${PROJECT_DIR} with “Recursive” checkbox ON fixes the issue.
Issue # 3: Now’s the part where i really get stuck! Adding #import to UIKitPhysicsViewController.h gives tons of errors, almost all of which say “No such file or directory”. Somehow i feel it has something to do with the path i specified in Header Section Paths, but i don’t know how to fix this? Setting the Section Header Path to “${PROJECT_DIR}/Box2D” also doesn’t help. Note: Physically, the Box2D.h file is located in “/UIKitPhysics/Box2D/Box2D.h” and “UIKitPhysics.xcodeproj” is at the root, right next to “/UIKitPhysics” (New Xcode4 project and file positioning).
Any guides on how to do it in XCode 4?
I am trying to add the Box2d , and got successful but cannot change the file type bcos iam using the sdk 4.3 and in that there is not file type …. So please help me
Hi !
Thanks a lot for your post !
I’ve just tried to make my Proj. with your post with xcode4, but i got some errors in createPhysicsWorld().
I can’t ‘world = new b2World(gravity, doSleep);’. The error is
/Users/myName/Documents/iOS/[S]ampleProg./Box2d/MyBox2dTest/MyBox2dTest/MyBox2dTestViewController.m:34: error: no matching function for call to ‘b2World::b2World(b2Vec2&, bool&)’
I set ${PROJECT_DIR} as ‘The Header Search Path’ , though…..
Any advice ?
Actually this tutorial might not work any more with the newer versions of Box2D. You have to check what they changed.
I got the answer by myself.
> I can’t ‘world = new b2World(gravity, doSleep);’. The error is
I just used ‘tags’ instead of the ‘Trunk’…
Thanks.
Hi,
How can i move the UIView objects with my finger ?
Do I need to implement touch methods ?
ex)
– (void)touchesEnded:(NSSet *)touches withEvent:(UIEvent *)event
If the objects in the Box2D world can be moved by implementing the specific method of ‘Box2D’,
Please give the sample code. I hope that it’s going to be fine with adding a few code to Your Good Tutrial.
Thanks a lot.
I found a solution for one who found 2000-3000 error
“The Project path must not contain any whitespace”
That’s all
Great help! One thing I had to change with the latest version of Box2D, as it seems that b2EdgeShape is no longer supported:
—
// Define the ground box shape.
b2EdgeShape groundBox;
// bottom
groundBox.Set(b2Vec2(0,0), b2Vec2(screenSize.width/PTM_RATIO,0));
groundBody->CreateFixture(&groundBox, 0);
// top
groundBox.Set(b2Vec2(0,screenSize.height/PTM_RATIO), b2Vec2(screenSize.width/PTM_RATIO,screenSize.height/PTM_RATIO));
groundBody->CreateFixture(&groundBox, 0);
// left
groundBox.Set(b2Vec2(0,screenSize.height/PTM_RATIO), b2Vec2(0,0));
groundBody->CreateFixture(&groundBox, 0);
// right
groundBox.Set(b2Vec2(screenSize.width/PTM_RATIO,screenSize.height/PTM_RATIO), b2Vec2(screenSize.width/PTM_RATIO,0));
groundBody->CreateFixture(&groundBox, 0);
——
Changed to….
——
// Define the ground box shape.
b2PolygonShape groundBox;
// bottom
groundBox.SetAsEdge(b2Vec2(0,0), b2Vec2(screenSize.width/PTM_RATIO,0));
groundBody->CreateFixture(&groundBox, 0);
// top
groundBox.SetAsEdge(b2Vec2(0,screenSize.height/PTM_RATIO), b2Vec2(screenSize.width/PTM_RATIO,screenSize.height/PTM_RATIO));
groundBody->CreateFixture(&groundBox, 0);
// left
groundBox.SetAsEdge(b2Vec2(0,screenSize.height/PTM_RATIO), b2Vec2(0,0));
groundBody->CreateFixture(&groundBox, 0);
// right
groundBox.SetAsEdge(b2Vec2(screenSize.width/PTM_RATIO,screenSize.height/PTM_RATIO), b2Vec2(screenSize.width/PTM_RATIO,0));
groundBody->CreateFixture(&groundBox, 0);
How did you fix the “no matching function for call to ‘b2World::b2World(b2Vec2&, bool&)’” error?
I’m getting the same and I don’t understand what you mean by “I just used ‘tags’ instead of the ‘Trunk’…”
Please explain it to me if you can. Thanks.
Hi Conrad,
How did you get it to work with dragging the UIViews? I tried it, but the dragging is buggy and when released it just shows up instantly back to where it was.
Please help out if you can.
Very useful tutorial… thanks a lot!!
Hi,
I am new to IPhone programming but I know Box2D from Flash-Programming and would like to use that.
I have problems to find the “Header Search Paths” to change to ${PROJECT_DIR}.
Where is that – maybe it changed in XCode 4.2? Can’t find it.
I am also not quite sure about:
“Since the default project probably has an include of the our view controller’s header in the app delegate, you need to make the same adjustment for the app delegate’s .m file. Get Info on the those files and change the file type to “sourcecode.cpp.objcpp”.
So I have to change the file type of my ViewController (.m + .h?) and and of the AppDelegate (.m+.h) Cocoa Files? Nothing to be changed in the Box2D files, right?
Cheers,
Oliver
1) please change that line to:-
world = new b2World(gravity); // just tested and work fine for the newly v2.21 release 🙂
2) then, delete this line too.
bool doSleep = true; // because you don’t need this line anymore.
remark: I tested in XCode 3.25 🙂
You will find a game called Climbers (source available) which has rope code in it which might help?
https://github.com/haqu/climbers
Thank you for your reply. I got it working same day, but thanks for your reply.
Did you manage to get that working? I’m trying to do the same thing. I tried a tutorial meant for cocos2d, but could never translate it for UIKit.
If you solved it, please let me know how. Thanks.
Great tutorial. Now can you please post more Box2D with UIKit tutorials. All the tutorials out there deal with Box2D with Cocos2D.
A tutorial on how to make the bodies drag-gable will be very useful.
We’re all looking up to you.
I know you can do it! lol
Thank you once again for a great tutorial.
why i can’t ? xcode 4.2
“UIView *oneView = (UIView *)b->GetUserData();” -> error
“bodyDef.userData = physicalView;” -> error
Thanks
For those of you having trouble with Xcode finding the Box2D.h (and related files). See the link below.
http://www.box2d.org/forum/viewtopic.php?f=7&t=7812
If you’re using ARC, you need to do:
bodyDef.userData = (__bridge void *)physicalView;
UIView *oneView = (__bridge UIView*)b -> GetUserData();
Hi
I want to add chimpuk2d in my single view based app like box2d added in this tutorial .
Can anybody please help me for do that .
I tried to do that but it showing error #include “constraints/util.h” not found
Please help me
Thanks in advance
Oliver’s question about doing the Get Info thing was never answered and I can’t find where you would do that in Xcode 4.61. So, does this code actually work with Xcode 4 or am I wasting my time ?
Thx for Great Tutorial! 1 question:
How i can destroy body using this:
// we abuse the tag property as pointer to the physical body
physicalView.tag = (int)body;
i solve it ) something like this:
for ( b2Body* b = world->GetBodyList(); b; b = b->GetNext())
{
if ((NSInteger)b == nCircles[ind].tag) {
world->DestroyBody(b);
}
}
where nCircles is UIImageView array
#define MAX_COUNT 100
UIImageView *nCircles[MAX_COUNT];
